Scrap Chocolate & Wafer Recycling Line

This project encompasses a recycling line that enables chocolate and wafer scraps separated during the production process to be ground in a controlled manner and converted into a format suitable for reuse in production. Through hygienic open product conveying systems and automation-controlled structure, a safe, traceable, and sustainable process has been created.

Industry

Food production – chocolate and wafer lines

Belt Type

Hygienic waste recovery and grinding line

Line Components

Grinding machine, open product conveyors, metal detector control point

Flow Type

Waste collection → Grinding → Open product conveying → Reuse feed

Line Structure and Applied Solution

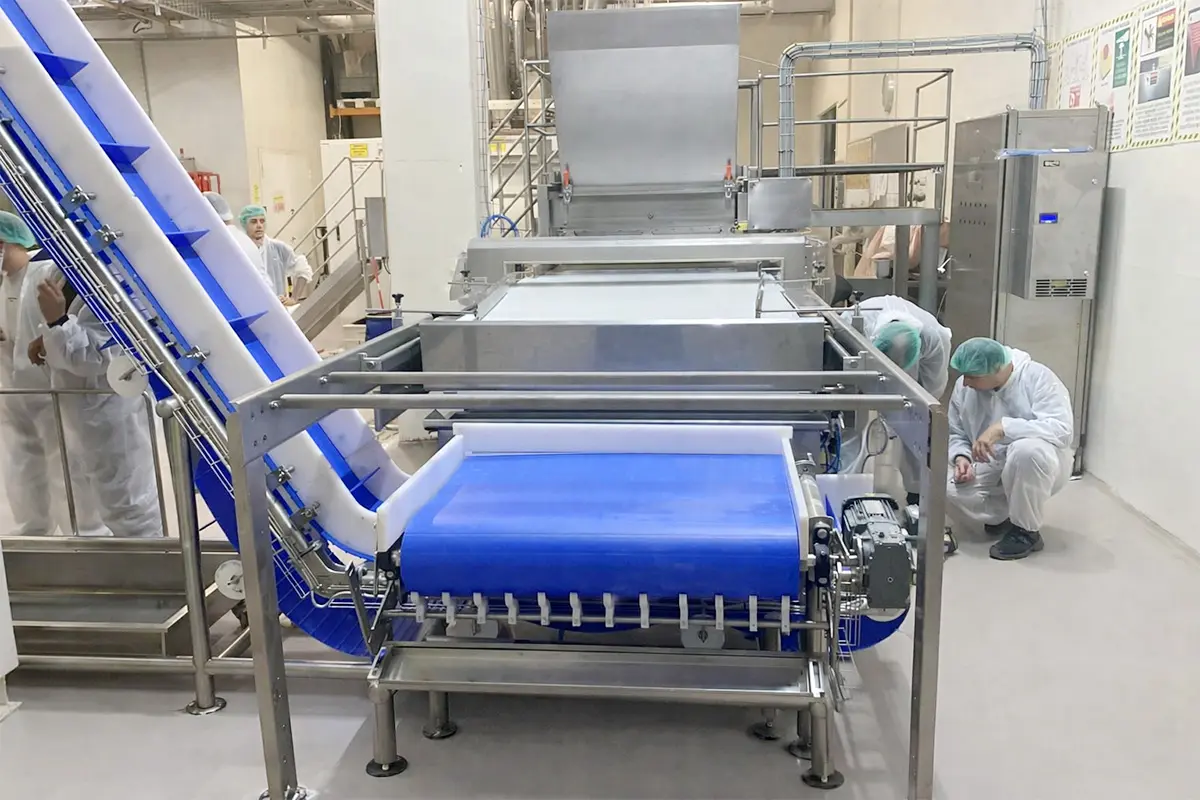

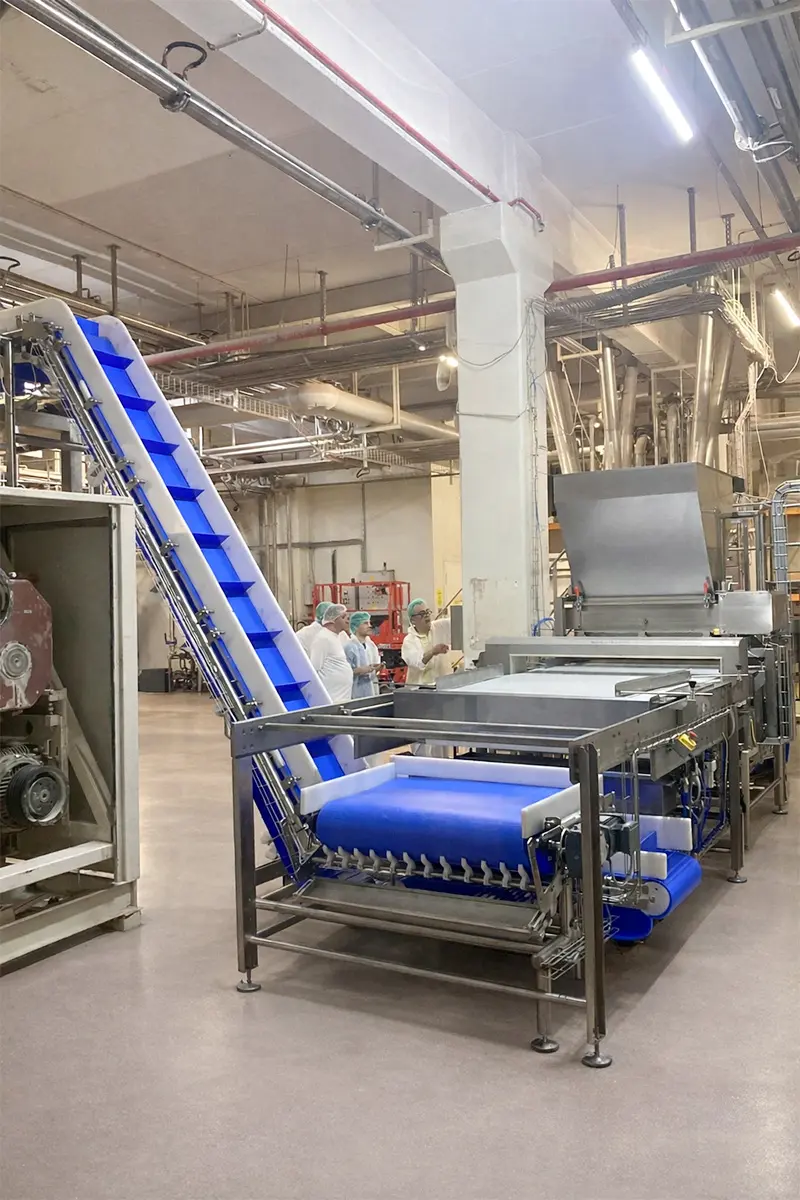

Waste chocolate and wafer scraps are ground to the desired granule size in the grinding machine and returned to the production process. Ground products are transported via conveyor systems suitable for hygienic open product conveying and completely washable. The line design is planned to provide maximum hygiene and minimum product loss in space-constrained facilities.

Precise Control in Flow Management

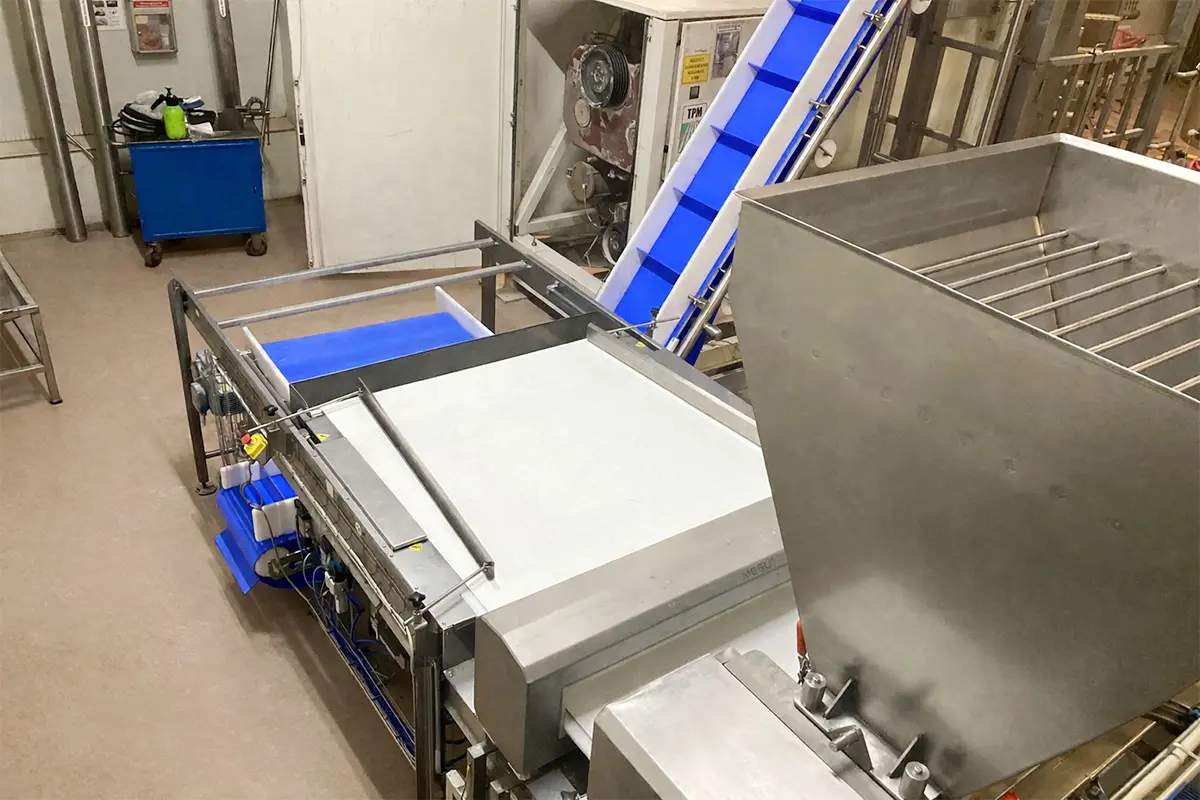

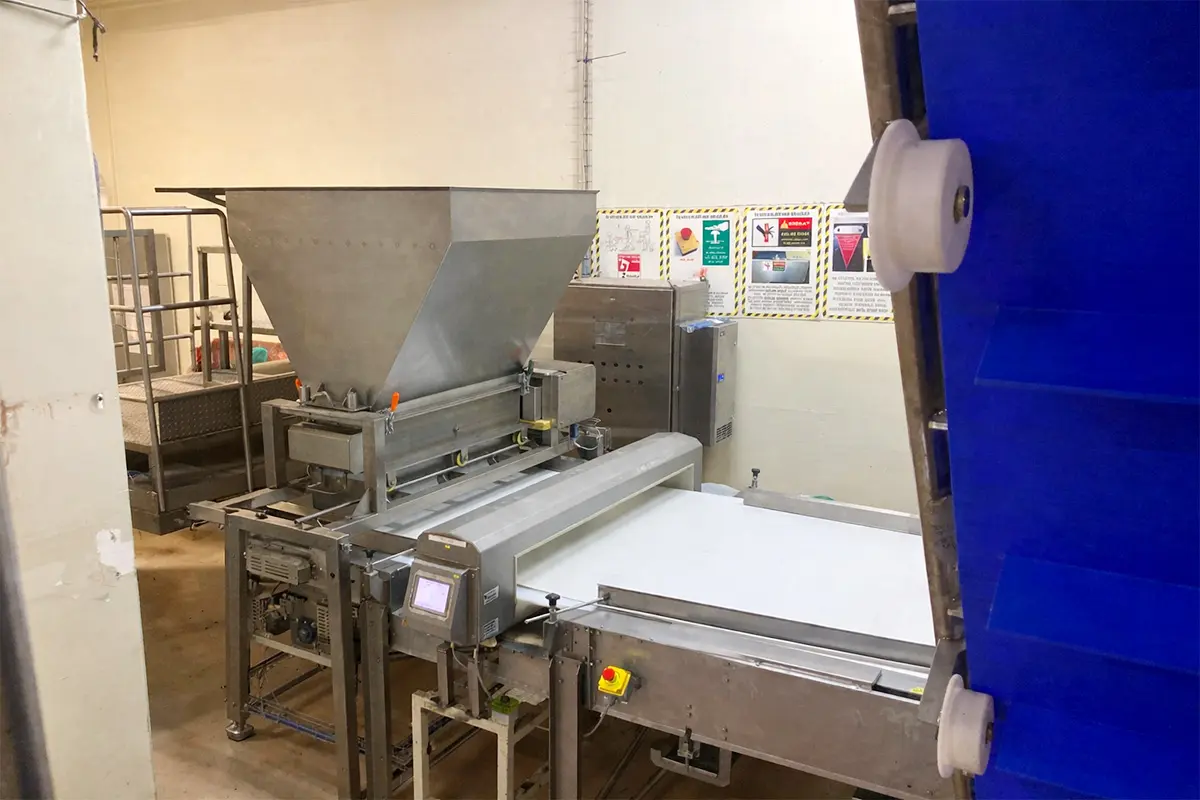

Product flow after grinding is monitored and controlled by a PLC-based automation system. Capacity and safety parameters are managed centrally. A metal detector positioned on the line detects unsuitable or foreign metal-containing pieces and removes them from the system via an automatic reject mechanism. This structure ensures quality assurance in the recovery process.

Controlled recovery of waste chocolate and wafers

Hygienic open product conveying capability

Completely washable (wash-down) conveyor design

Easy sanitation and quick cleaning capability

Traceable process management with PLC-based automation

Quality control with metal detector and automatic reject system

Structure supporting sustainable production approach

Applications

Chocolate and wafer production facilities

Scrap and waste recovery lines

Hygienic grinding and conveying applications in the food industry

Open product handling and reuse processes

Technical Specifications

Feature Value / Description
System Type Scrap grinding and recycling line
Conveyor Type Hygienic open product conveyors
Body Fully stainless steel
Cleaning Fully washable (wash-down)
Control System PLC-based automation
Quality Control Metal detector + automatic reject
Product Compatibility Chocolate and wafer pieces

Safely and hygienically recover scrap products

You can contact our engineering team for sustainable recycling solutions in chocolate and wafer production lines.
