Z-type, L-type, and straight elevator configurations
Elevator Conveyors

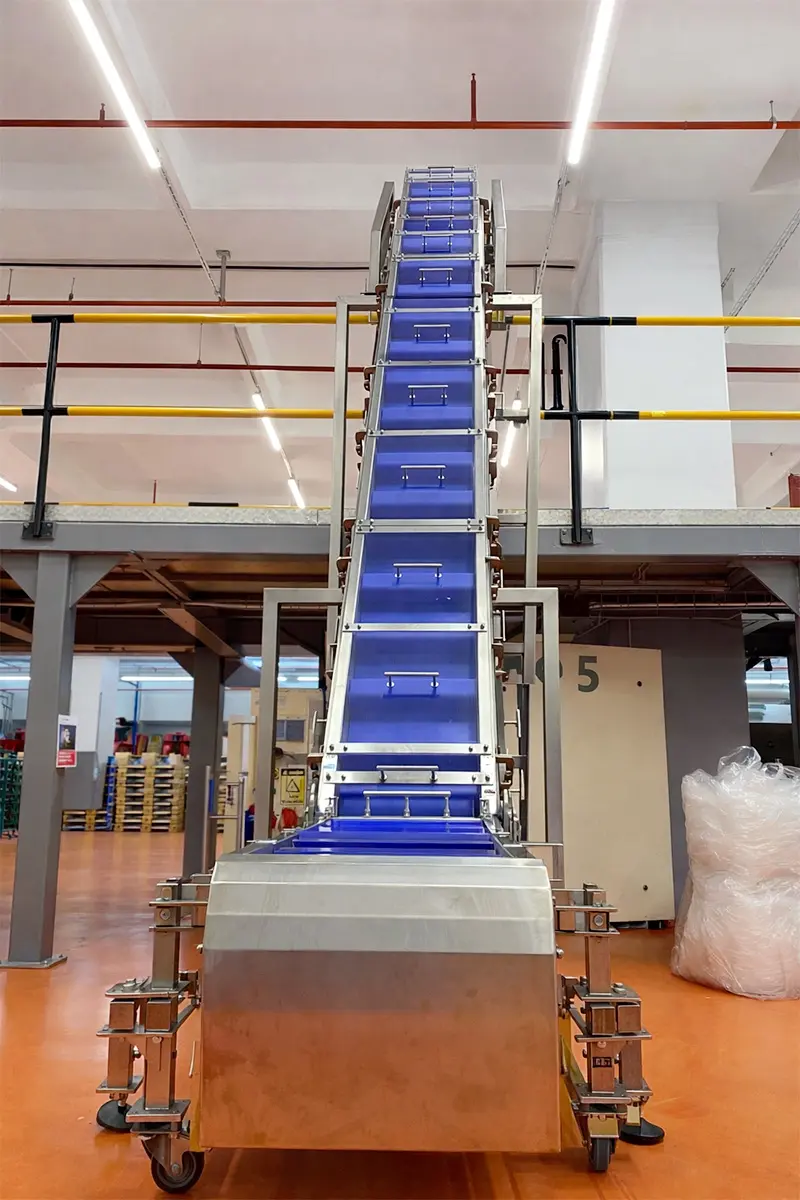

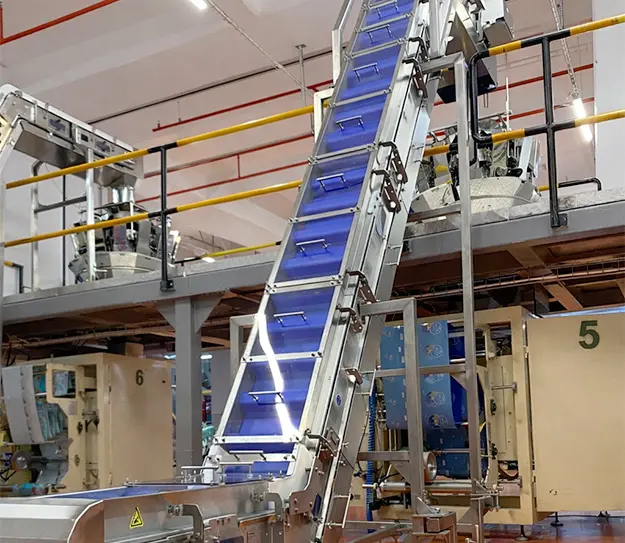

Elevator conveyors are vertical transport systems that ensure products are transported upward or downward in a controlled, safe, and stable manner throughout the production line. With Z-type, L-type, or straight configuration options, they adapt to different height differences and enable transfer between lines without deforming the product shape.
Flow Management and Line Features
The belt or bucket carrier structure used in elevator conveyors keeps the product stable during transport. The inverter-controlled drive system adapts to the line tempo at feeding and discharge points, reducing the risks of accumulation, spillage, and irregular flow. This structure provides stable vertical transport flow, especially in packaging and filling lines that require continuous and synchronized operation.
Applications
Elevator conveyors are used in various production and packaging applications where vertical transportation is required.
Vertical filling and packaging lines
Food production (legumes, grains, frozen products)
Chemical and cleaning products manufacturing
Industrial granule and raw material transportation
Height transitions between lines
Integrated Systems

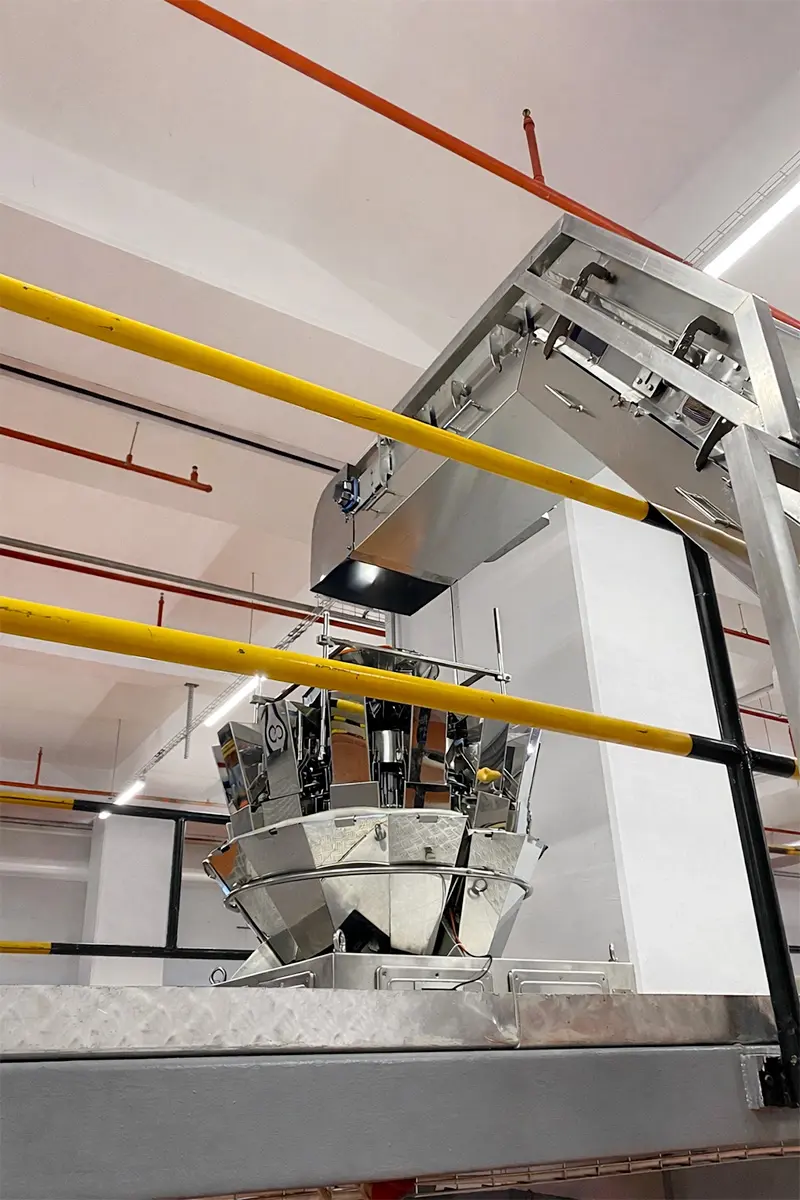

Elevator conveyors, configurable to work integrated with other equipment in the production line.
Application Areas
Technical Specifications
| Feature | Description |
| Configuration | Z-type, L-type, or straight |
| Belt / Carrier | Modular belt or bucket structure |
| Body | Stainless steel (AISI 304 / 316) |
| Speed control | Inverter supported |
| Transport Direction | Up / down |
| Control | PLC compatible |
Stable and controlled solution in vertical transportation
Manage height differences safely with elevator conveyors, make product flow between lines seamless.
